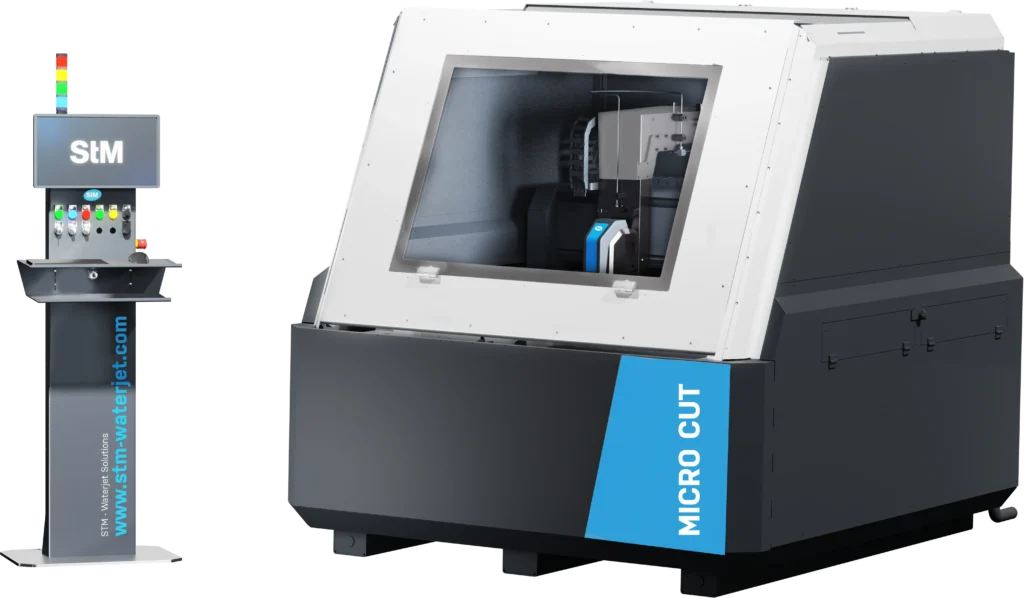

STM MicroCut 4.0

Highest precision and extremely delicate cuts

View product data sheet
STM MicroCut| Wasserstahlschneideanlage | Micro | MicroCut | 2D schneiden | Mikrowasserstrahlschneiden

Profitable and sustainable

  • High accuracy due to direct measuring system
  • Low vibration granite frame
  • Highly dynamic linear motor drives

Highest security

  • Variable high-precision clamping frame
  • Completely enclosed plant
  • Compact dimensions

Ease of use

  • Ergonomic control panel
  • Integrated control
  • First-class cutting head technology

Cutting heads

STM MicroCut 4.0

Precise and resource-saving

The latest generation MicroCut micro waterjet cutting system combines the high repeatability and precision of direct drives with the smallest possible external dimensions. Unlike conventional cutting systems, the MicroCut can also be used to produce extremely delicate and highly functional components across materials, conveniently and with record cutting accuracy.

The integrated SmartCut software ensures significant material, personnel and time savings. This makes the MicroCut the ultimate all-round solution for advancing miniaturization, e.g. in the fields of medical technology, microelectronics and sealing technology.

Request
Test cut

Work surfaces

Other sizes, beyond these listed here, are possible on request!

Graphic of the working surface size of the Mini EcoCut waterjet cutter from STM
Request more sizes

Details

Detailed information on the STM MicroCut

  • Abrasive container 100 kg with minihopper Pressure conveying system integrated in the machine frame
  • Stainless steel catch basin with integrated flushing device-Drives
  • Stainless steel catch basin with integrated rinsing device
  • Waterjet cutting valve, abrasive head and accessories
  • Computer with 20° LED monitor, keyboard and mouse
  • Abrasive dosing unit CNC with intermediate hopper
  • STM SmartCut waterjet cutting software
  • Protective enclosure with automatic door
  • STM Edge Tracker Position Laser
  • Machine frame with granite bed
  • Direct absolute measuring system
  • CNC control NUM FLEXIUM
  • Ergonomic control panel
  • Precision clamping frame
  • Linear motor drives
  • Repeatability: ± 0.0025 mm
  • Positioning accuracy: ± 0.0025 mm
  • Traversing speed: max. 10 m/min
  • Highest precision and cutting equipment
  • TAC 12° skew compensation
  • 2D application
  • STM BasicClean or OneClean rinsing systems
  • STM TAC 12° bevel cut compensation cutting head
  • Water level control
  • Drilling spindle pneumatic

Material diversity

Waterjet cutting offers unlimited possibilities

With the waterjet technology can almost any material, whether metal, stone, glass, plastic and more. to be edited. It is a cold cutting process with high precision and quality.

We explain how it works, what types & techniques are available and in which industries it is used.
