Used machines

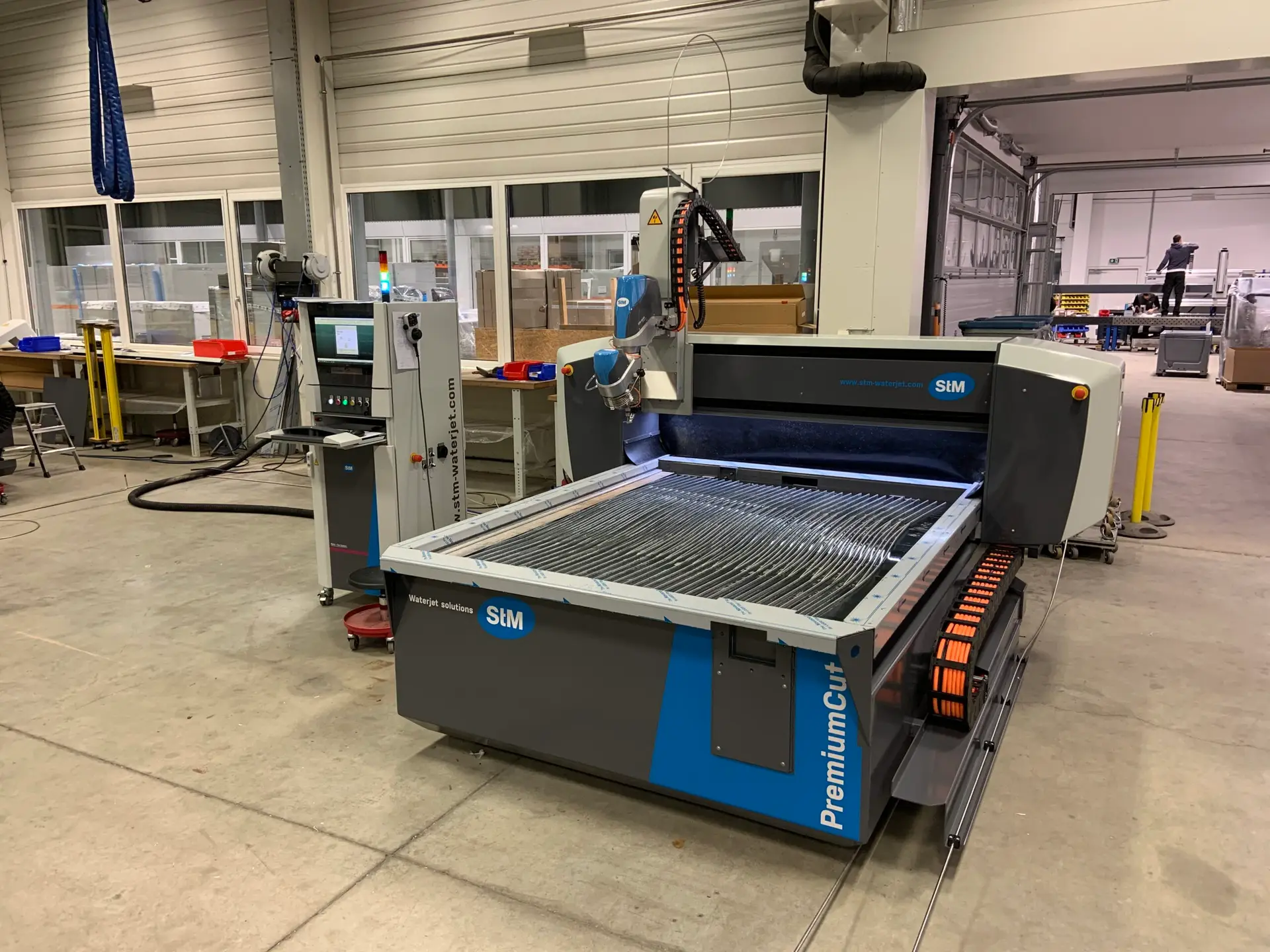

Waterjet cutting system | STM PremiumCut 1530 (2023)

Year of manufacture: 2023
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH
Model: STM 1530 PremiumCut

Cutting head optional: 2D/TAC12/3D68

Year of manufacture: 2023
Condition: New

• Cutting area effective 1502 x 3002mm
• CNC control NUM Flexium up to 40 m/min
• Z-axis CNC clear height 300mm
• Control Housing Premium Desk
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system: triple light barriers incl. 2 mirror columns

Special equipment:

• Premium/MasterCut guides
• Tensioning frame left and front incl. Eccentric Clamps
• Heavy duty support for workpieces up to 1000 kg/m²
• Position laser
• Drilling spindle

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

Waterjet cutting system | 1020 MASTERCUT V.2

Year of manufacture: 2023
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH
Model: STM 1020 MasterCut V.2

Cutting head optional: 2D/TAC12

Year of manufacture: 2023
Condition: New
Operating hours: 0 h

• Cutting area effective 1000 x 2000 mm
• CNC control NUM up to 15 m/min
• Z-axis CNC clear height 200mm
• STM 2D cutting head
• Control housing Control panel V2 incl. Switch cabinet in basin
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system

Special equipment:

• Premium/MasterCut guides Y-axis
• Heavy duty support for workpieces up to 1000 kg/m²
• Position laser

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

Waterjet cutting system | STM 1015 PREMIUMCUT

Year of manufacture: 2023
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH
Model: STM 1015 PremiumCut

Operating hours: approx. 100 h

Cutting head optional: 2D/TAC12/3D68

Year of manufacture: 2023
Condition: New

• Cutting area effective 1002 x 1502mm
• CNC control NUM Flexium up to 40 m/min
• Z-axis CNC clear height 300mm
• Control Housing Premium Desk
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system: triple light barriers incl. 2 mirror columns

Special equipment:

• Premium/MasterCut guides
• Tensioning frame left and front incl. Eccentric Clamps
• Heavy duty support for workpieces up to 1000 kg/m²
• Position laser

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

Waterjet cutting system | STM 6025 PremiumCut 3D

Year of construction: 2019
System type: Used, Refurbished

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH

Operating hours: approx. 1,800 h
Model: STM 6025 PremiumCut

• Effective cutting area 6002 x 2502mm
• CNC control NUM Flexium up to 35 m/min
• 2x Z-axis CNC clear height 300mm
• 2x cutting head STM 3D68
• Control Housing Premium Desk
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• SmartCut waterjet software incl. Nesting module
• 2x water jet cutting valve
• 2x abrasive cutting head
• 2x abrasive dosing unit CNC with intermediate container
• Abrasive storage container 1,650 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system: triple light barriers incl. 2 mirror columns

Special equipment:

• PremiumCut guides
• Tensioning frame left and front incl. Eccentric Clamps
• Heavy duty support for workpieces up to 1000 kg/m²
• Lance flushing system
• Position laser

Other components:

• High-pressure pump BFT Ecotron 40.37+
• OneClean+ cleaning system incl. Scales

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

High-pressure pump | BFT Servotron 40.45+

Year of construction: 2018
System type: Used, Refurbished

Data on the BFT high-pressure pump:

Machine type: High pressure pump
Manufacturer: BFT
Model: Servotron 40.45+

available now!

Operating hours: 2000 h

• Temperature sensors for non-return valves and pressure relief valves
• Water booster pump with pressure reducer and safety valve
• Frequency-controlled servomotor and gear pump
• 400 MPa max. Permissible operating overpressure
• 380 MPa max. Continuous operating pressure
• 4.6 l/min max. Delivery rate
• Voltage: 3*400V / 50Hz
• 45 kW drive power
• Soundproof housing
• incl. Documentation
• Oil/air cooler
• Touch panel
• Oil filling

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our terms and conditions apply, which you can view on our website.

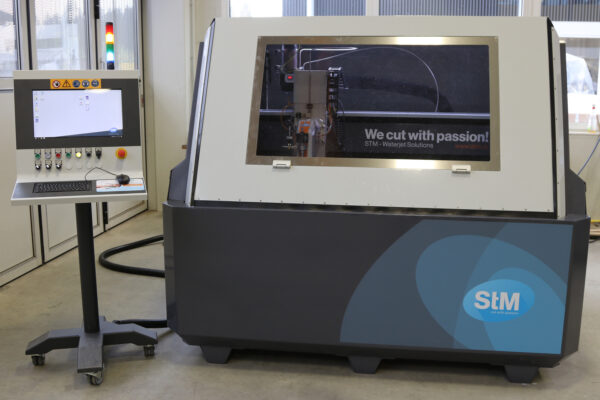

Waterjet cutting system | STM 1020 Cube 2D

Year of manufacture: 2023
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH

Location: STM Waterjet AG (Switzerland)
Model: STM 1020 Cube 2D

Year of manufacture: 2023
Condition: New
Operating hours: 0 h

• Cutting area effective 1000 x 2000 mm
• CNC control NUM up to 15 m/min
• Z-axis CNC clear height 100mm
• STM 2D cutting head
• Control housing Control panel V2 incl. Switch cabinet in basin
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Cover with viewing window and safety function
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

Waterjet cutting system | STM PremiumCut 3020

Year of construction: 2024
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH

Model: STM 3020 PremiumCut 3D

• Effective cutting area 3002 x 2002mm
• CNC control NUM Flexium up to 40 m/min
• Z-axis CNC clear height 300mm
• STM 3D cutting head
• Control Housing Premium Desk
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system: triple light barriers incl. 2 mirror columns

Special equipment:

• PremiumCut guides
• Tensioning frame left and front incl. Eccentric Clamps
• Heavy duty support for workpieces up to 1000 kg/m²
• Position laser

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

High-pressure pump | BFT 60.55

Year of construction: 2018
System type: Used, Refurbished

Data on the BFT high-pressure pump:

Machine type: High pressure pump
Manufacturer: BFT
Model: Hypertron 60.55

Operating hours: approx. 800 h

• 600 MPa max. Permissible operating overpressure
• 530 MPa max. Continuous operating pressure
• 4.6 l/min max. Delivery rate
• 55 kW drive power
• Voltage: 3*400V / 50Hz
• Oil/air cooler
• Soundproof housing
• Touch panel
• Axial piston pump with asynchronous motor
• Water booster pump with pressure reducer and safety valve
• Temperature sensors for non-return valves and pressure relief valves
• Oil filling
• incl. Documentation

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our terms and conditions apply, which you can view on our website.

Waterjet cutting system | STM 1010 MicroCut TAC12

Year of manufacture: 2023
Plant type: New

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH
Model: STM 1010 MicroCut TAC12

Year of manufacture: 2023
Condition: New

• Cutting area effective 1000 x 1000mm
• CNC control NUM Flexium+ up to 10 m/min
• Z-axis CNC clear height 100mm
• STM TAC12 cutting head
• Linear motor drives
• Direct absolute measuring system
• Machine frame with granite bed
• Protective enclosure with automatic door
• Stainless steel catch basin with integrated rinsing device
• Ergonomic control panel
• Control with air conditioner integrated in the machine frame
• Computer with 20° LED monitor, keyboard and mouse
• STM SmartCut waterjet cutting software
• Reservoir 100 kg integrated in machine housing

Special equipment:

• Precision clamping frame
• Position laser

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.

Waterjet cutting system | 6020 MasterCut V.2 TAC

Year of manufacture: 2023
Plant type: New

AVAILABLE NOW!

Data on the STM waterjet cutting system:

Machine Type: Waterjet Cutting Machine
Manufacturer: STM Waterjet GmbH
Model: STM 6020 MasterCut V.2 TAC

Year of manufacture: 2023
Condition: New
Operating hours: 0 h

• Cutting area effective 6050 x 2050 mm
• CNC control NUM up to 15 m/min
• Z-axis CNC clear height 200mm
• STM TAC12 cutting head
• Control housing Control panel V2 incl. Switch cabinet in basin
• Computer with 20″ LED monitor and splash-proof keyboard and mouse
• Waterjet Software SmartCut
• Waterjet cutting valve
• Abrasive cutting head
• Abrasive dosing unit CNC with intermediate hopper
• Abrasive storage tank 450 kg
• Abrasive Minihopper System Pressure Vessel
• Safety system

Special equipment:

• Premium/MasterCut guides Y-axis
• Heavy duty support for workpieces up to 1000 kg/m²
• Position laser
• Lance flushing system
• Collecting trays for small parts

Technical data and prices are subject to change without notice. Subject to prior sale.
Price on request!

Our GTC apply, which you can view on our website.
